Overview
Tackling Complex Welding Challenges
A regional NSW manufacturer specialising in agricultural machinery faced significant challenges in welding large, heavy parts. These components required welds on multiple planes, often in hard-to-reach areas, making manual welding inefficient and unsafe. The company needed a solution to improve safety, precision, and throughput while addressing labour shortages.
The Challenges
Barriers to Efficiency and Safety
The manufacturer encountered several obstacles that hindered their operations:
Hard-to-Access Welds
Complex geometries required multiple manual repositionings, slowing down production.
Manual Handling Risks
Large, heavy parts were awkward and unsafe to rotate manually, increasing the risk of workplace injuries.
Labour Shortages
Difficulty maintaining throughput due to a lack of skilled welders.
Inconsistent Weld Quality
Achieving consistent, full-penetration welds on heavy assemblies was a challenge with manual processes.
To overcome these issues, the company sought an advanced robotic welding solution that could handle large, complex parts with precision and efficiency.
The Solution
Precision Welding for Heavy Assemblies

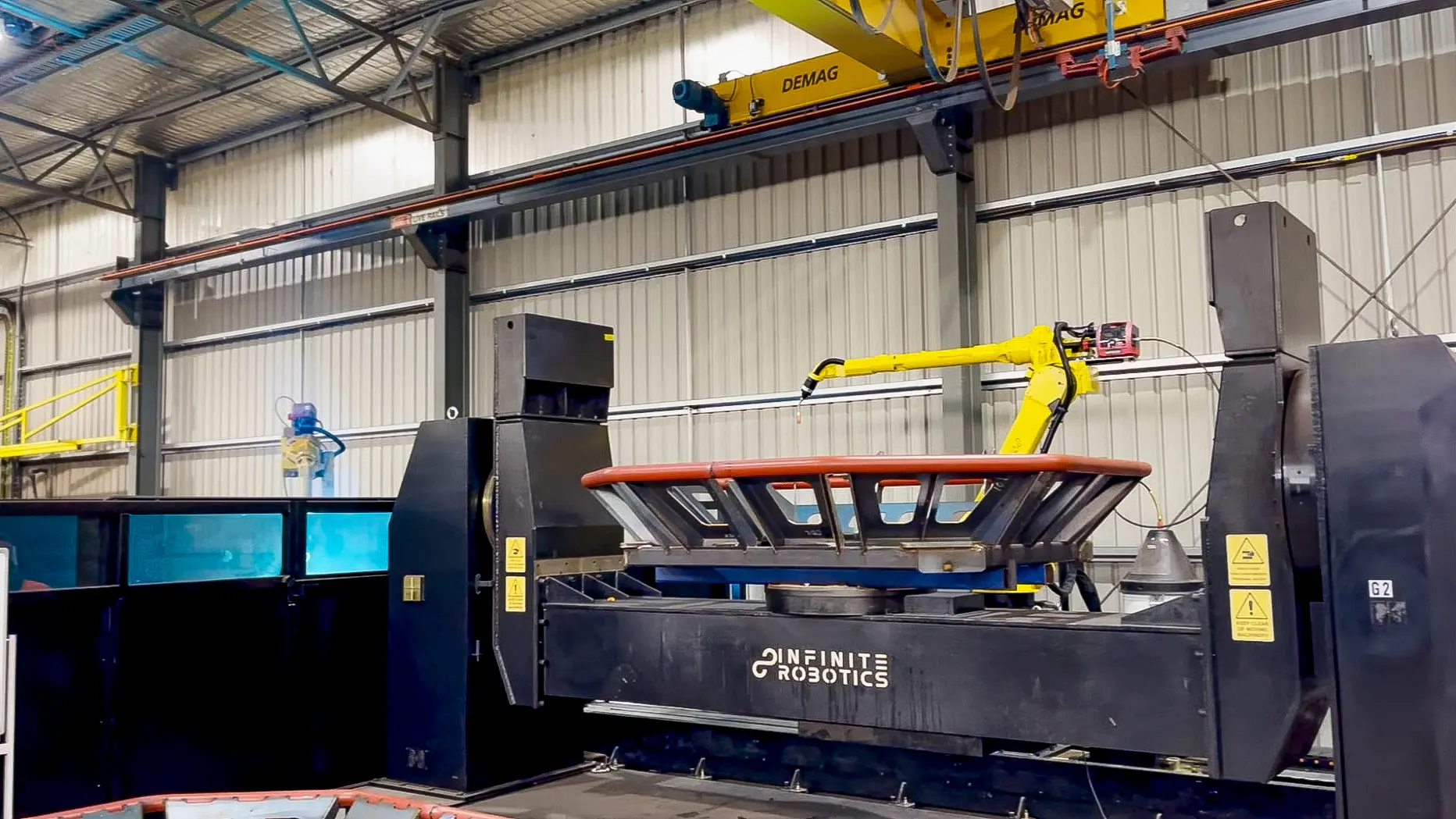

Infinite Robotics delivered a custom Australian-made robotic welding system designed to meet the unique demands of the customer’s operations. The solution included:
Track-Mounted FANUC ArcMate M710iC/12L Robot
A long-reach industrial robot capable of moving along the length of the track to weld large components.
2-Axis Welding Positioner
Enabled full rotational access to multi-plane welds, ensuring complete coverage of complex geometries.
Fronius TPS/i 500A Water-Cooled Pulse MIG Welding System
Provided precise, high-amperage welds with minimal distortion.
Key Features & Capabilities
Safety Meets Productivity
The robotic welding system offered numerous benefits, including:
Accurate Multi-Plane Welding
The 2-axis positioner provided full rotational access, enabling consistent welds on all planes.
Consistent Weld Quality
The Fronius MIG system delivered strong, full-penetration welds across all products.
Track Mobility
The robot’s track-mounted design allowed it to handle long components with ease
High-Capacity Positioner
Capable of rotating parts up to 3,000mm wide, 2,000mm high, and weighing up to 2,500kg.
Enhanced Safety
Eliminated the need for manual handling of heavy parts, reducing workplace risks.
Implementation
A Smooth Transition to Automation
Infinite Robotics provided the system as a ready-to-use solution, ensuring minimal disruption to the customer’s operations. The implementation process included:
Installation and Commissioning
The system was installed and fully operational in a short timeframe.
Comprehensive Training
Operators received hands-on training to quickly adapt to the new system and maximise its capabilities.
The intuitive design and user-friendly programming allowed the customer’s team to achieve excellent results from day one.
The Results
Transforming Operations
The robotic welding system delivered impressive results, addressing the customer’s key challenges:
Eliminated Manual Handling
Automation removed the need for manual repositioning of heavy parts, improving safety and efficiency.
Faster Cycle Times
The system’s precision and speed significantly reduced production times.
Consistent Weld Quality
The advanced MIG welding system ensured strong, reliable welds across all products.
These improvements not only solved the customer’s immediate challenges but also positioned them for long-term success in a competitive market.
Suitable Applications
Versatility in Heavy Fabrication
The heavy-duty robotic welding system is ideal for a wide range of applications, including:
Agricultural Machinery
Perfect for large, complex components requiring multi-plane welds.
Mining Equipment
Handles heavy assemblies with precision and consistency.
Heavy Fabrication
Designed for robust, full-penetration welds on large parts.
Whether you’re producing agricultural machinery or other heavy-duty products, this system offers the precision, safety, and efficiency you need to stay ahead.
