CRX-30𝑖A Welding Cobot
The Highest-Payload CRX Cobot. Built for Heavy-Duty Collaborative Welding
The FANUC CRX-30𝑖A is the heaviest lifter in the FANUC CRX collaborative robot series. Combining a 30 kg payload, 1,899 mm reach, and an operator-friendly automation platform, the CRX-30𝑖A cobot is ideal for a wide range of applications, including welding, palletising, material handling, and machine loading and unloading.
Delivering consistent, reliable, industrial-grade performance in a compact, collaborative package, this cobot is designed to work safely alongside your team, maximising your productivity and operational efficiency.
High Payload ●
Precise Performance ●
Fast and Reliable ●
Durable Design ●
High Payload ●
Precise Performance ●
Fast and Reliable ●
Durable Design ●
CRX-30𝑖A
Why Choose CRX-30𝑖A Welding Robots
High Payload
The FANUC CRX-30𝑖A supports up to 30 kg payloads to enable efficient, collaborative palletising of larger loads.
Ultimate Versatility
Unique manual guided teaching functions, and versatile design allows this cobot to tackle diverse tasks in confined spaces.
Reliable Repeatability
Built-in internal force sensing capabilities and superior dexterity, ensure the CRX-30𝑖A delivers high-quality, consistent results every time.
The Benefits
Cobot Welding Advantages
Heavy-Duty Cobot
Durable cobots handle heavy weld applications alongside experienced welders.
Cutting-Edge Technology
High-quality cobots use advanced built-in sensors to deliver superior results and efficiency.
Simple, Fast Programming
Hand-guided teaching and tablet programming support fast setup and integration.
Versatile Weld Access
Empower your operators with in-depth training to maximise efficiency and achieve consistent results.
Maintenance-Free Operation
8-Year maintenance-free design reduces operational costs and unplanned downtime.
Full-Body Protection
Full IP67 rating protects the cobot in moist or dusty industrial environments.
Flexible Mounting Options
Floor, ceiling, and angled mounting configurations maximise reach and minimise footprint.
Expert Training and Support
Structured operator training and ongoing technical support, ensure quality results from day one.
Key Features
The FANUC CRX-30𝑖A welding cobot offers state-of-the-art features, designed to maximise efficiency and productivity:
Robot Platform
The FANUC CRX-30𝑖A
30 kg payload, 1,889 mm reach, and full IP67 protection, engineered for heavy welding, material handling, and machine tending applications in demanding environments.
FANUC R-30𝑖B Plus Controller
High-performance robot controller with user-friendly iHMI interface, enhanced processing capability, and seamless integration with welding power sources, positioners, and safety systems.

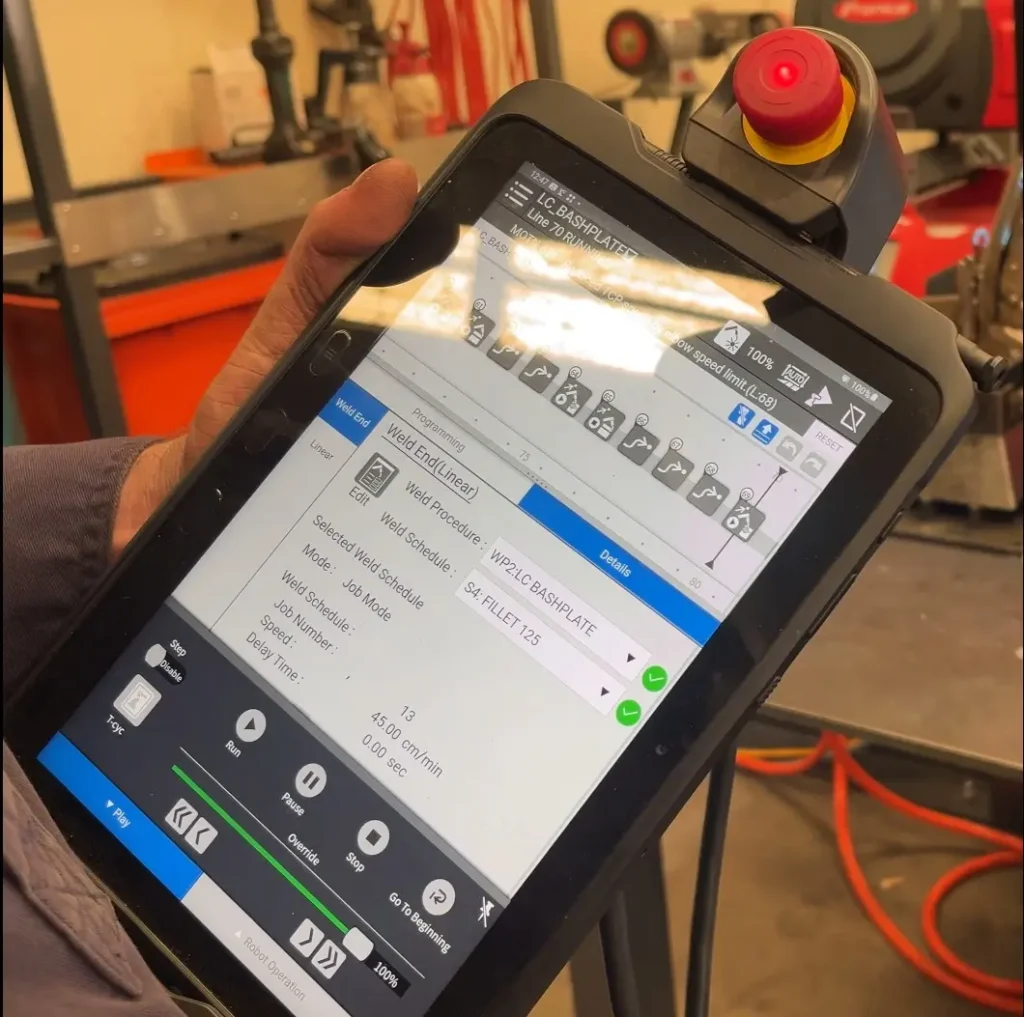

Tablet Teach Pendant with Drag-and-Drop Programming
Intuitive tablet-based programming interface with manual guided teaching and drag-and-drop path saving.
Wrist-Mounted Teaching Buttons
Wrist buttons on the J6 flange allow operators to teach and confirm robot positions directly at the point of work.
Welding Technology
Advanced MIG Systems
Fronius or Kemppi power sources deliver unmatched precision and control across steel, stainless steel, and aluminium.
Water-Cooled Torch Systems
Reduces torch and consumable wear during heavy duty cycles.
Workpiece Handling
The CRX-30𝑖A’s exceptional payload and long reach make it particularly effective for hard-to-reach applications, delivering:
Heavy Component Welding
The 30 kg payload capacity allows the cobot to handle heavier weld assemblies.
Automatic Rotation with Positioner Integration
Fully integrated positioners rotate components into the optimal position automatically.
Continuous Robot Utilisation
Coordinated motion boosts efficiency and minimises downtime.
System Construction
Heavy-Duty Fabricated Base Frame
Engineered for demanding, industrial environments.
Fully Wired and Factory Tested
Ensures reliability and immediate readiness upon delivery.
Controls and Safety
Operator Control Station
User-friendly controller supports easy use and productivity.
Integrated Safety Systems
Designed to meet Australian Standards.
Guarded Cell Design
Ensures operator safety during welding processes
Delivery Scope
Full system design, build, installation, commissioning, and operator training for seamless integration into your production line.
Implementation
Technical Specifications
| Robot Model | CRX-30𝑖A |
| Robot Reach | 1889 mm |
| Repeatability | ± 0.05* |
| Robot Payload | 30 kg |
| Controlled Axes | 6 |
| Programming Method | Teach Pendant or Offline Programming |
| Welding Processes | MIG, TIG, Laser, Plasma |
| Fume Extraction | Optional fume hood or torch-mounted systemm |
Options Available
Enhance your CRX-30𝑖A welding system with a range of additional options, including:
Linear Tracks
Custom travel lengths that extend the robot’s reach.
Multi-Axis Positioners
For complex, multi-face welding applications.
Offline Programming
Streamline programming and minimise downtime.
Automated Part Handling
Speed up your workflow.
Laser Welding and Plasma Cutting
Advanced technologies for specialised applications.
Advanced Sensing Technologies
Enhance precision and consistency.
Case Studies
Infinite Robotics has delivered high-performance FANUC CRX cobot welding systems to manufacturers across Australia to help solve real production challenges and boost operational efficiency. See how a cobot welding system could transform your workshop.
Optimise Aluminium and Steel Welding for Safety Equipment
Overview Safety Equipment Fabrication Challenges Safety Link is a manufacturer of innovative fall protection and working-at-heights safety equipment
Transforming Welding for High-Quality 4WD Accessories
Overview Tackling Automotive Welding Challenges ATD Customs in Crows Nest, QLD, builds high-end bull bars and accessories for
Start Welding Smarter Today
Enhance your productivity with a high-performance FANUC CRX cobot welding system. Engineered to deliver superior payload, flexibility, and intuitive programming, the CRX-30𝑖A is the perfect solution for safe, efficient palletising, material handling, machine loading and unloading.
Contact us today to order your robotic welding solution and start streamlining your production line!
